DIY Condenser Microphone for PC | Audio Recording | NE5532 IC HINDI | ELECTROINDIA

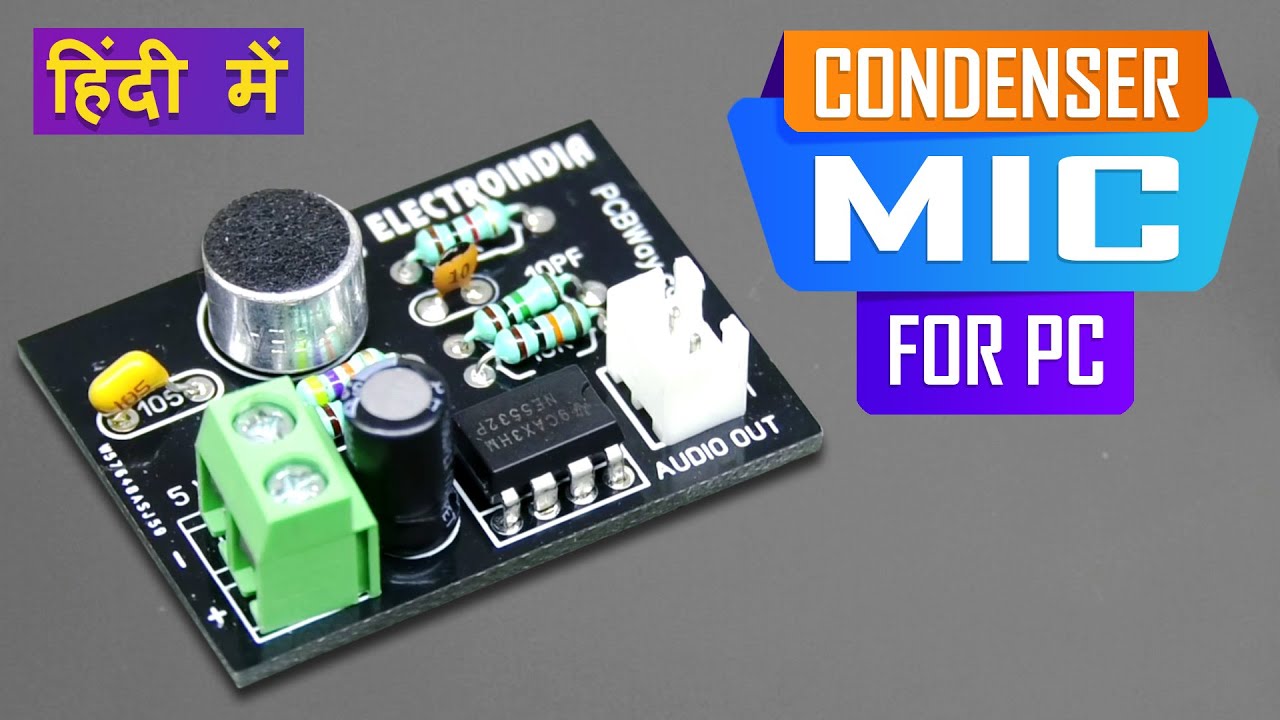

This is Condenser Microphone Board for PC. you can connect this board to your computer and record your voice with it. I used NE5532 IC and 5 volt battery for this project if you want to make this project please watch the video carefully (This video has English subtitles)
Bill of materials used in this project
  • 1 condenser mic
  • 1 Resistor 1K 1/4 Watt
  • 1 Resistor 47K 1/4 Watt
  • 1 Resistor 1M 1/4 Watt
  • 2 Resistor 10K 1/4 Watt
  • 1 Capacitor 1uf = 105
  • 1 Capacitor 22uf 50V
  • 1 Capacitor 10pF
  • 1 IC NE5532
  • 1 Connector 2 Pin (2.54mm)
  • 1 Connector - Screw Terminal 2 Pin (5mm pitch)

 ðŸ‘‰ Free Downloads
